Live-Line Power Quality Meter

Live-Line Power Quality Meter

Qualstik holds nine sets of power quality readings up to 2000A, 500kV, 2.5" sensor opening
Model #
8-061 XT Plus

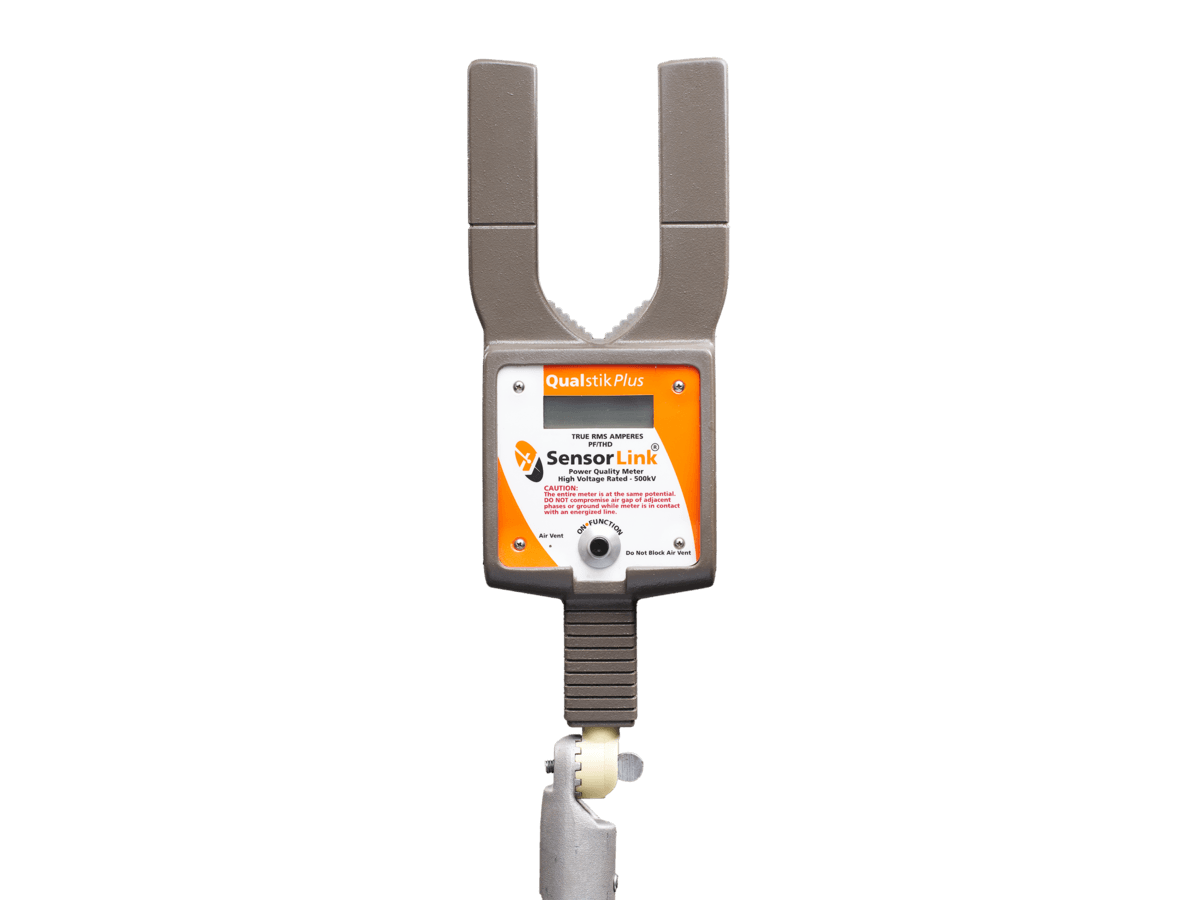

Model 8-06 XT Plus Live-Line Power Quality Meter

Range of Operation
True RMS Amps: 1 - 2000 A
Power Factor: 0.01 - (Lag) to 0.01 + (Lead)
THD Amps: 1 - 100%
Voltage: Rated 500 kV
Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models available

Resolution
Amps 1.0 - 99A: 0.1 A
Amps 100 - 2000A: 1 A
Power Factor: 1.0 to 0.01
THD Amps: 1%

Accuracy
Amps: ± 1% ±2 Counts
Power Factor: ± .01 from .71 Lead to .71 Lag
THD Amps: ± 1% from 0 to 25% ±
Note: Accuracy is diminished if the current is less than 15 amps

Mechanical
Measurements: Stores Nine Readings
Standard Sensor Opening: 2.5 in, 6.35 cm
Standard Sensor Weight: 3.0 lbs, 1.37 kg
Operating Temperature: -22 to +140 degrees F (-30 to +6- degrees C)
Display: Graphics LCD
Housing: Shock & water resistant molded urethane
Controls: Single button operation
Hot stick mounting: Universal chuck adapter (Hot stick not included)
Battery: 9 volt alkaline

EEC Standards: Successfully passed international test standards indicated by CE
