High Voltage, Multiple Reading Ammeter

High Voltage, Multiple Reading Ammeter

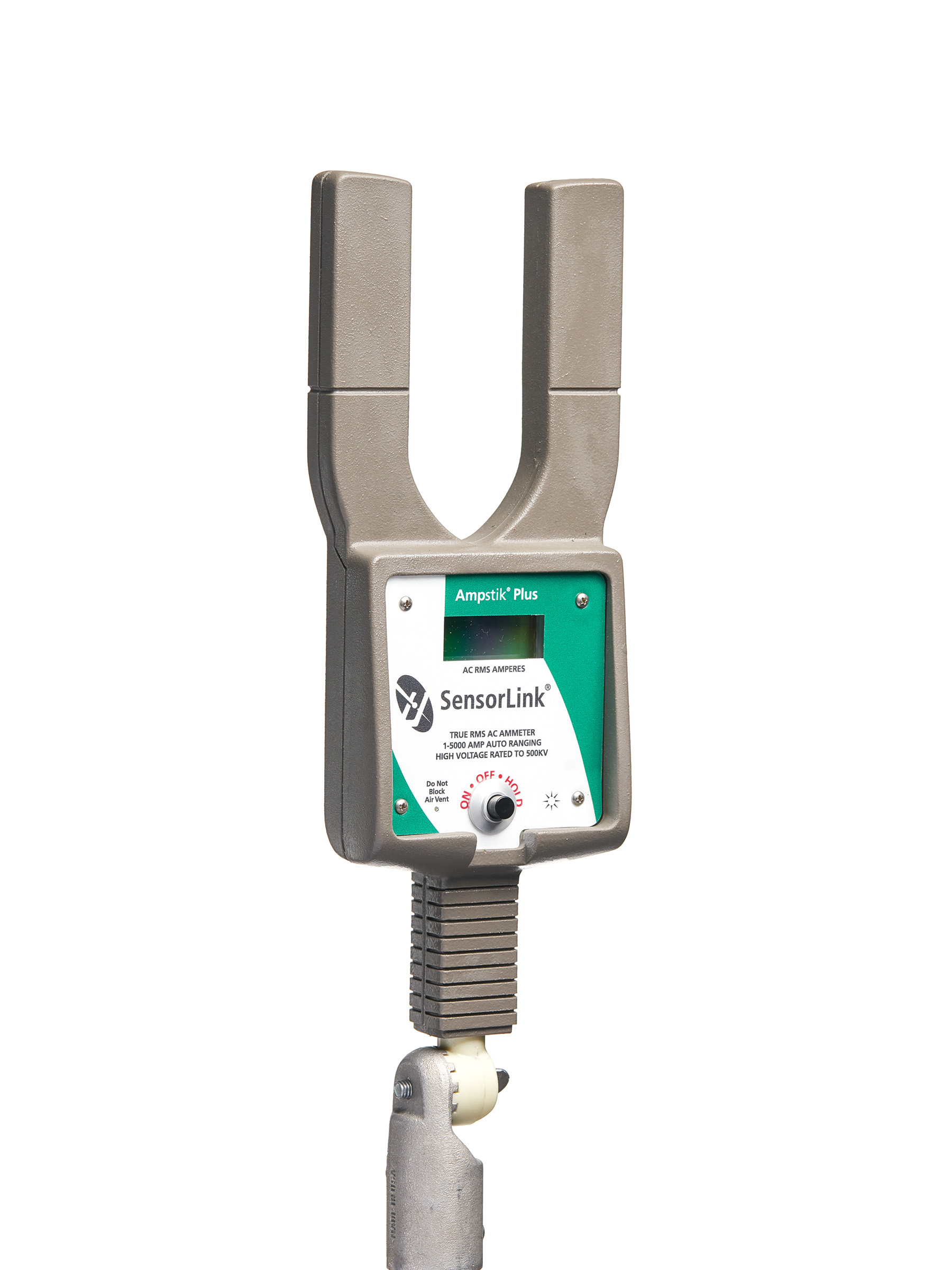

True RMS Ampstik, holds four readings, 5000A, 500kV, Standard 2.5" sensor opening
Model #
8-020 XT Plus

Model 8-020 XT PLUS

Range of Operation
Voltage: 0 - 500 kV
Current: 1 - 5000 A

Sensor Opening:
Standard Opening Width: 2.5 in, 6.35 cm

Resolution
Amps 1 - 99.9 A: 0.1 A
Amps 200 - 1999 A: 1 A
Amps 2000 - 5000 A: 0.01 kA

Accuracy: ± 1% ± 2 counts

Operation
Frequency: 60 Hz (57 to 63 Hz) or 50 Hz (47 to 53 Hz) Models Available
Controls: One button operation
Readings: Four reads

Mechanical
Weight Standard Sensor: 2.5 lbs, 0.97 kg
Operating Temperature: -22 to 140 degrees F (-30 to + 60 degrees C)
Display: 3.5 Digit Display
Housing: Shock & water resistant molded urethane
Hot stick mounting: Universal chuck adapter (Hot stick not included)
Battery: 9 volt alkaline
